Ford 9.75 Inch Axle - Differential, Ring and Pinion, Gear & Axle Parts Catalog

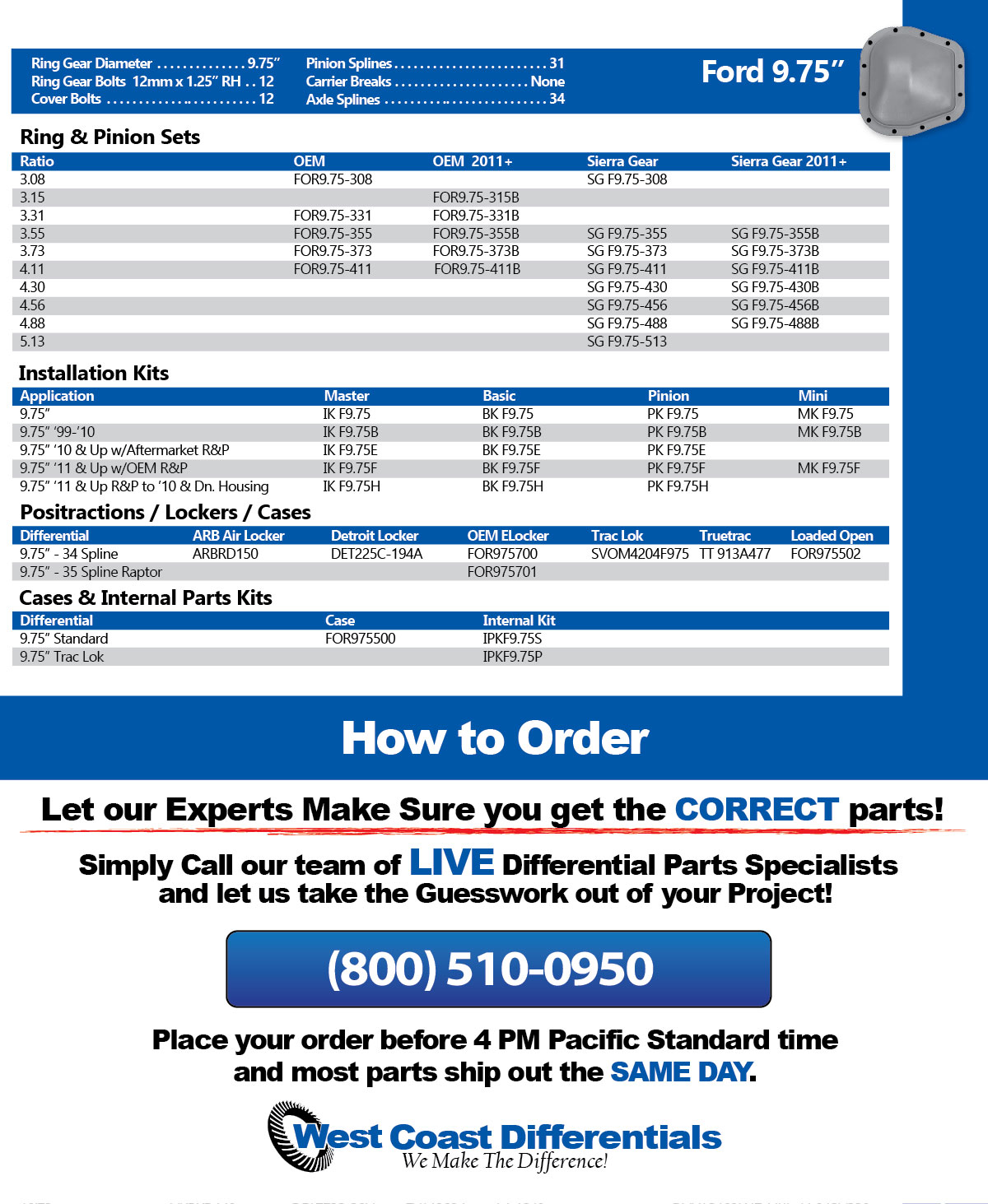

Click Page to Enlarge


Ford 9.75″ Differential – Common Applications

1999-2014  |  Ford E-Series Van
1997-2014  |  Ford Expedition
2015-2020  |  Ford Transit Van

1997-2020  |  Ford F-150
2010-2020  |  Ford F-150 Raptor


Ford 9.75″ Axle Assembly – Exploded View

Ford 9.75 Rear Axle - Parts Diagram

Images presented for reference and educational purposes only. To have an image removed from this website, please contact us at: info@differentials.com
