GM 7.25 Inch IFS Front Axle - Differential, Ring and Pinion, Gear & Axle Parts Catalog

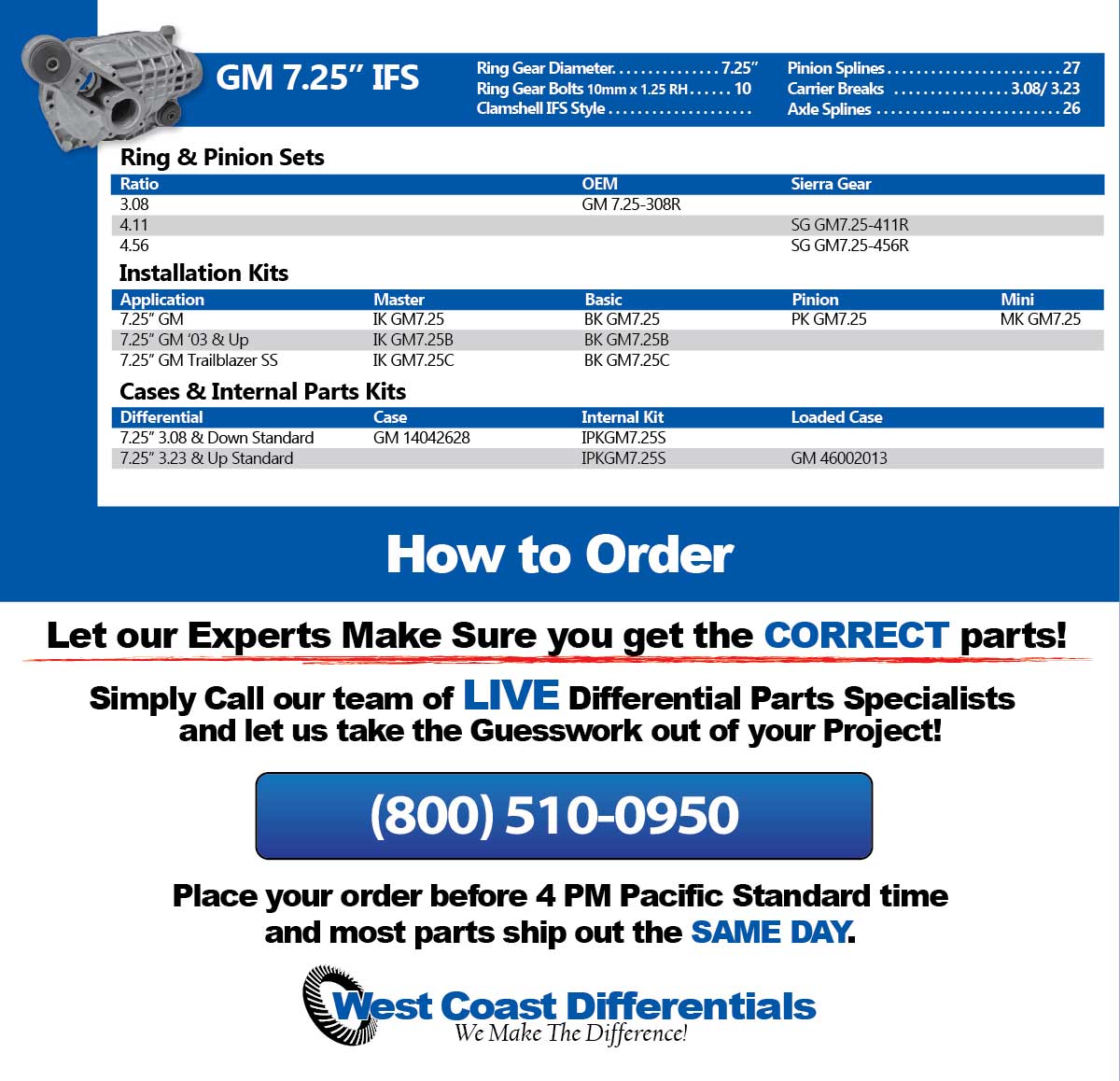

Click Page to Enlarge


GM 7.25″ IFS Front Differential – Common Applications

1985-2005  |  Chevrolet Astro / Safari Van
2003-2011  |  Chevrolet Express Van
1983-2002  |  Chevrolet S10 Blazer
1983-2002  |  Chevrolet S10 Pickup

2002-2003  |  GMC Envoy
1998-2003  |  GMC Sonoma
1995-1999  |  GMC Jimmy / Pickup
1992-1994  |  GMC Typhoon
1991-2003  |  Oldsmobile Bravada


GM 7.25″ IFS Front Differential – EXPLODED VIEW
GM 7.25 IFS Front - Parts DiagramCLICK TO ENLARGE

GM 7.25″ “In Oil Pan” IFS Front Differential – EXPLODED VIEW
GM 7.25 IOP IFS Front Exploded ViewCLICK TO ENLARGE

Images presented for reference and educational purposes only. To have an image removed from this website, please contact us at: info@differentials.com
