GM 7.5 and 7.625 Inch Axle - Differential, Ring and Pinion, Gear & Axle Parts Catalog

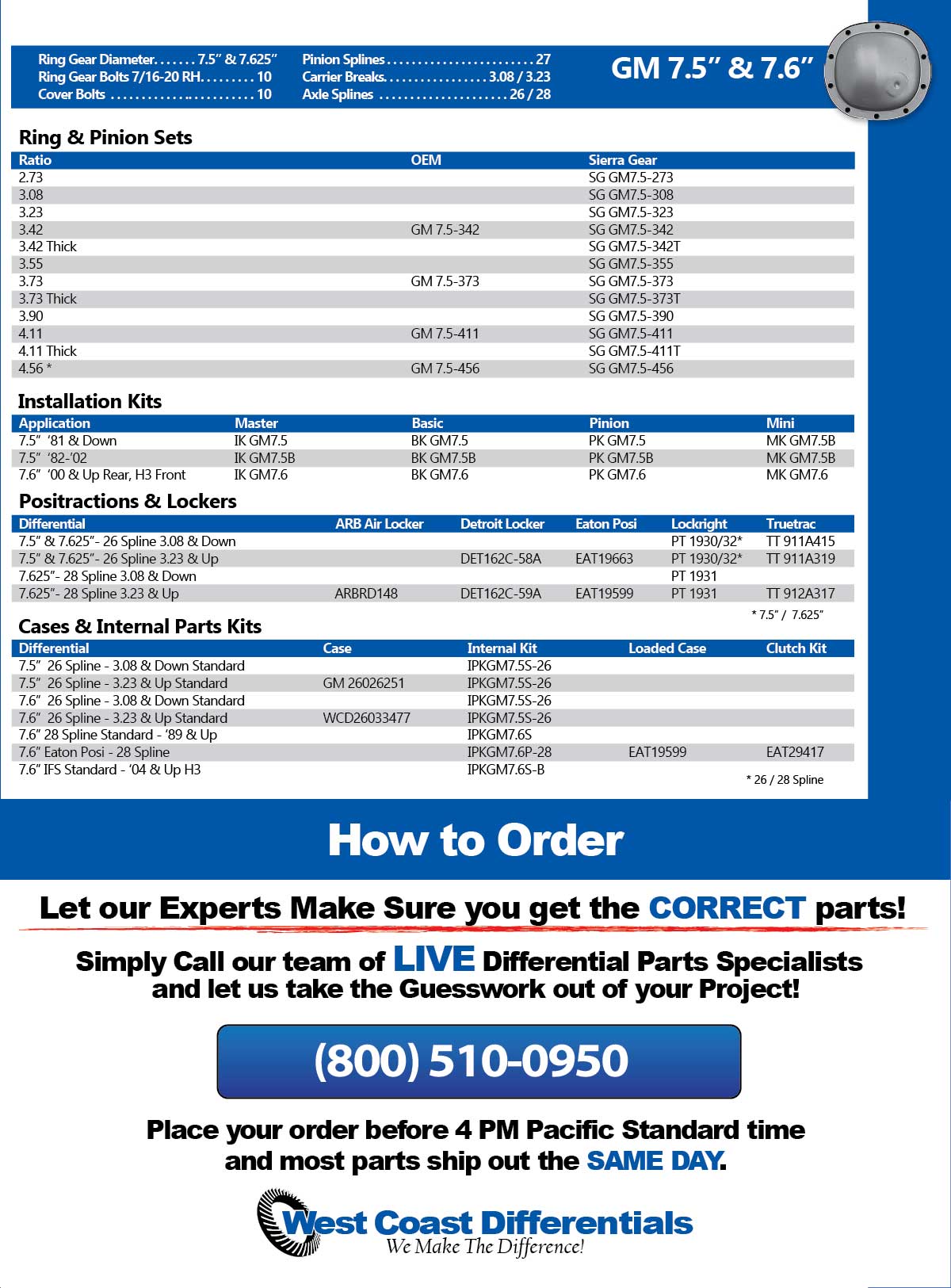

Click Page to Enlarge

Additional Components For GM 7.5″ and 7.6″ Axles

Limited Slip Posi Positraction Eaton Truetrac True Track Auburn Gear DifferentialLimited-Slip Differentials

Automatic Locking Differential Locker Detroit Locker Lockright GrizzlyAutomatic Locking Differentials

Selectable Locker Locking Differential ARB Air Eaton ELocker Zip Harrop Push Button DifferentialSelectable Locking Differentials

Car Truck Axle Shaft Rear End U Joint Axle Bearing Seal KitAxle Shafts & Axle Bearing Kits

GM 7.5″ & 7.6″ Axle – Common Applications

1982-2002  |  Camaro / Firebird / Trans Am
1982-2005  |  Chevrolet Astro / Safari Van
1975-1980  |  Chevrolet Monza
1983-2005  |  Chevrolet S10 Blazer / Pickup
1971-1977  |  Chevrolet Vega

1983-2005  |  GMC Jimmy / Pickup
2002-2005  |  GMC Envoy
1994-2000  |  GMC Sonoma
1990-1999 |  Isuzu Rodeo
1993-1999  |  Oldsmobile Bravada

GM 7.6″ Rear Axle – EXPLODED VIEW

GM 7.5 and 7.6 Rear Axle Exploded View

CLICK TO ENLARGE
GM 7.6 IFS Front Axle – EXPLODED VIEW

GM 7.5-7.6 Rear Axle - Parts Diagram

CLICK TO ENLARGE

Images presented for reference and educational purposes only. To have an image removed from this website, please contact us at: info@differentials.com
