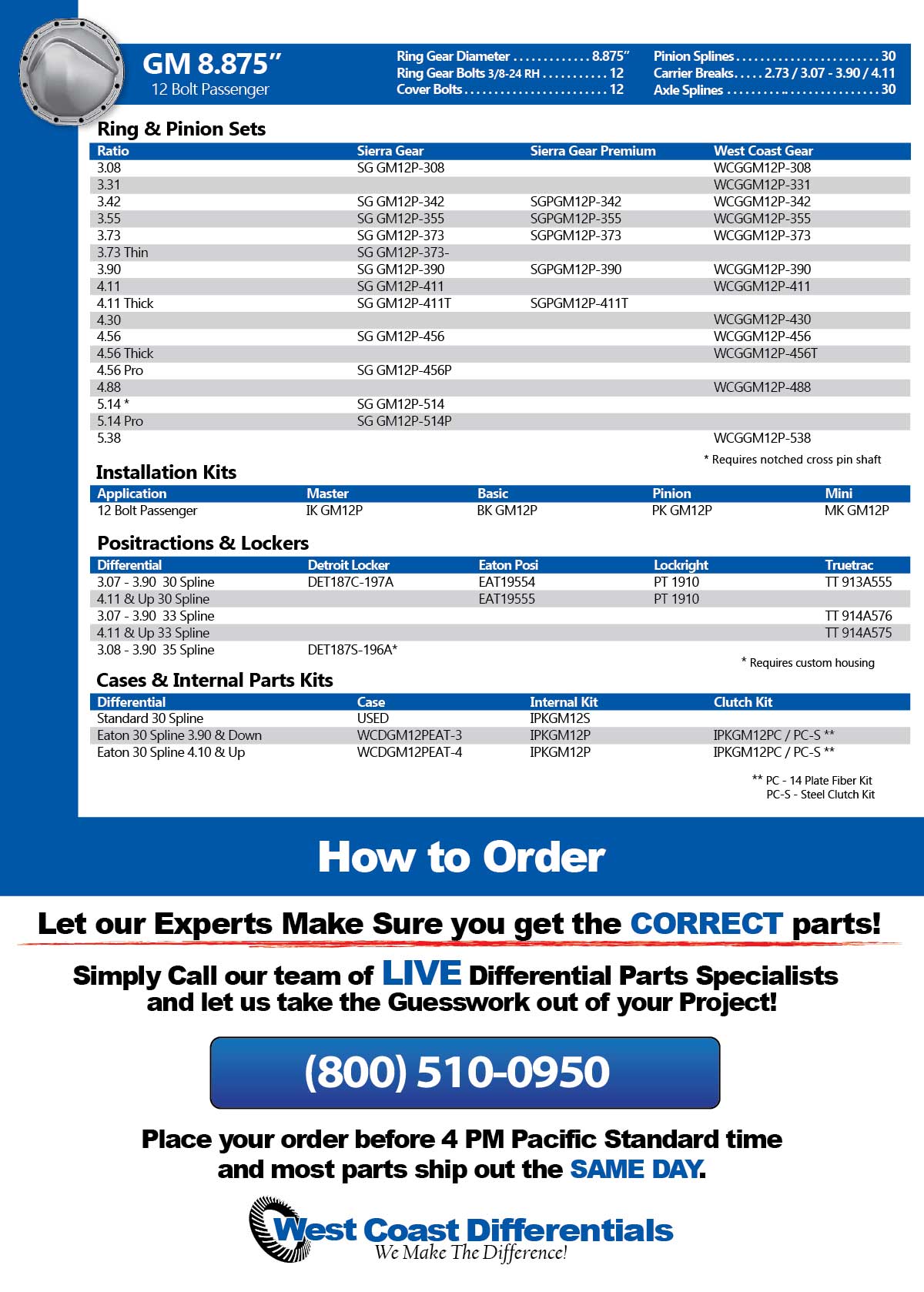

GM 12 Bolt Passenger 8.875 Inch Axle - Differential, Ring and Pinion, Gear & Axle Parts Catalog

Click Page to Enlarge


GM 12-Bolt Passenger Rear Axle – Common Applications

1964-1972  |  Chevrolet Bel Air
1964-1972  |  Chevrolet Biscayne
1967-1972  |  Chevrolet Camaro
1966-1970  |  Chevrolet Caprice
1964-1968  |  Chevrolet Chevy II
1965-1972  |  Chevrolet El Camino
1964-1972  |  Chevrolet Impala

1970-1972  |  Chevrolet Monte Carlo
1968-1972  |  Chevrolet Nomad
1964-1972  |  Chevrolet Nova
1964-1972  |  Buick Wildcat
1969-1972  |  Pontiac Trans Am
1970-1972  |  Pontiac GTO

GM 12-Bolt Passenger Rear Axle – Exploded View Diagram

GM 12 Bolt Rear Axle Exploded View Diagram

Images presented for reference and educational purposes only. To have an image removed from this website, please contact us at: info@differentials.com
